Economy Light Gauge System

Economy Light Gauge System

  • Description
  • Specifications

Description

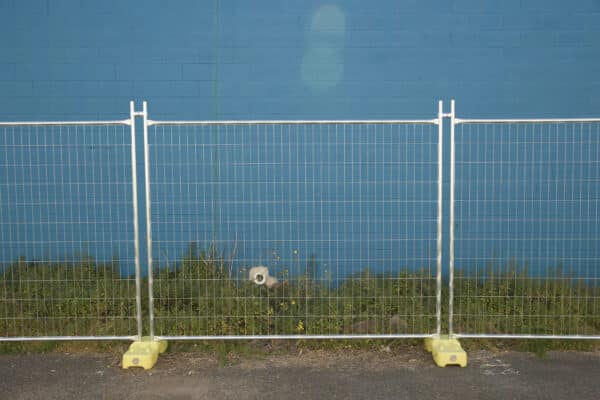

The Economy Light Gauge panel system is manufactured with high quality steel, mesh and welding procedures which is hot dipped galvanised after welding, making the panel more robust and stable. This is our most economical panel making it light weight and easy to maneuver, install or relocate.

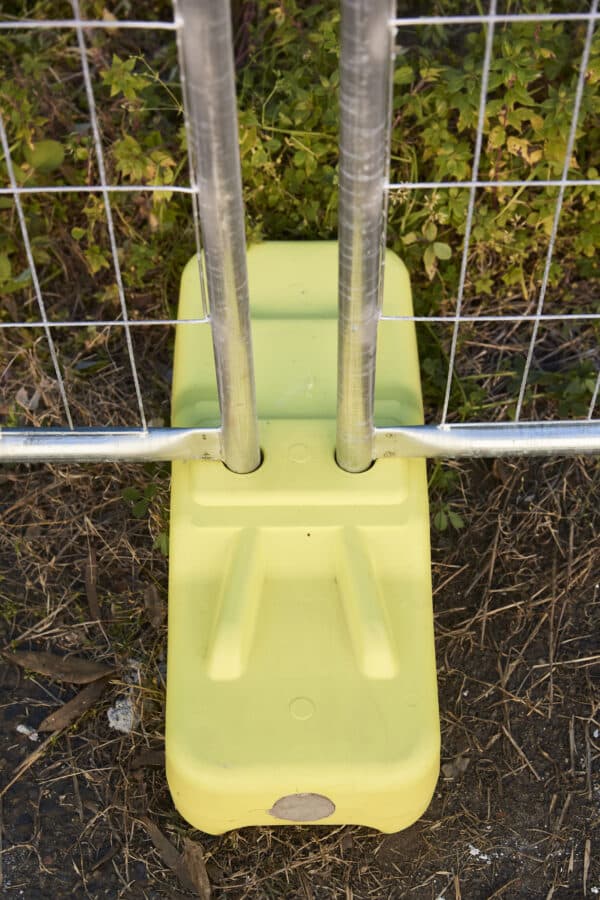

The panels are locked together with hot dipped galvanised steel clamps providing extra strength and stability. Yellow concrete capped footing blocks using high grade plastic with UV rating to avoid fading. The blocks are filled with complex concrete mix to add weight and stability to the system. See accessories for bracing, shade cloth, hand rail, gates and dog mesh. Ready Fence has been granted a design certificate to meet AS 4687-2007.

Panel:
Overall: 2.1m high x 2.4m wide 32mm OD pipe with 1.4 mm wall thickness
Mesh wire infill: 3mm 150mm x 60mm spacing
Finish: Hot dipped galvinsed after welding over 50 microns
Weight: 14KG

Blocks:
Overall: 560mm long x 190mm wide x 135mm high
Weight: 31Kg
