Light Gauge System

Light Gauge System

  • Description
  • Specifications

Description

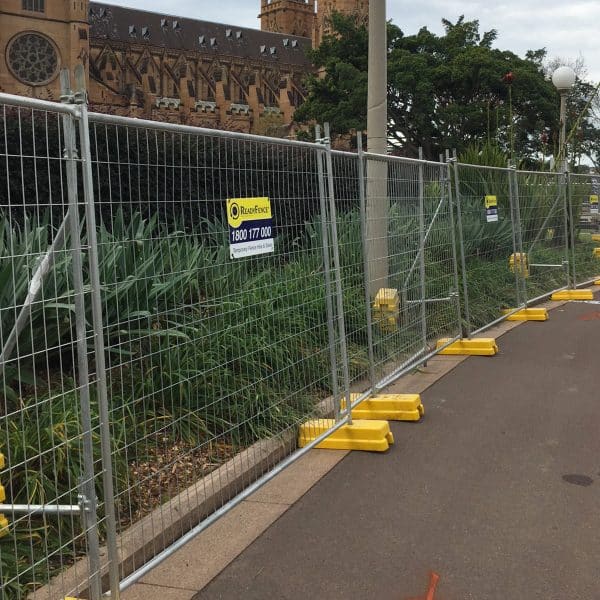

The Light Gauge panel system is manufactured with high quality steel, mesh and welding procedures which is hot dipped galvanised after welding, making the panel more robust and stable. The panels are locked together with hot dipped galvanised steel clamps providing extra strength and stability.

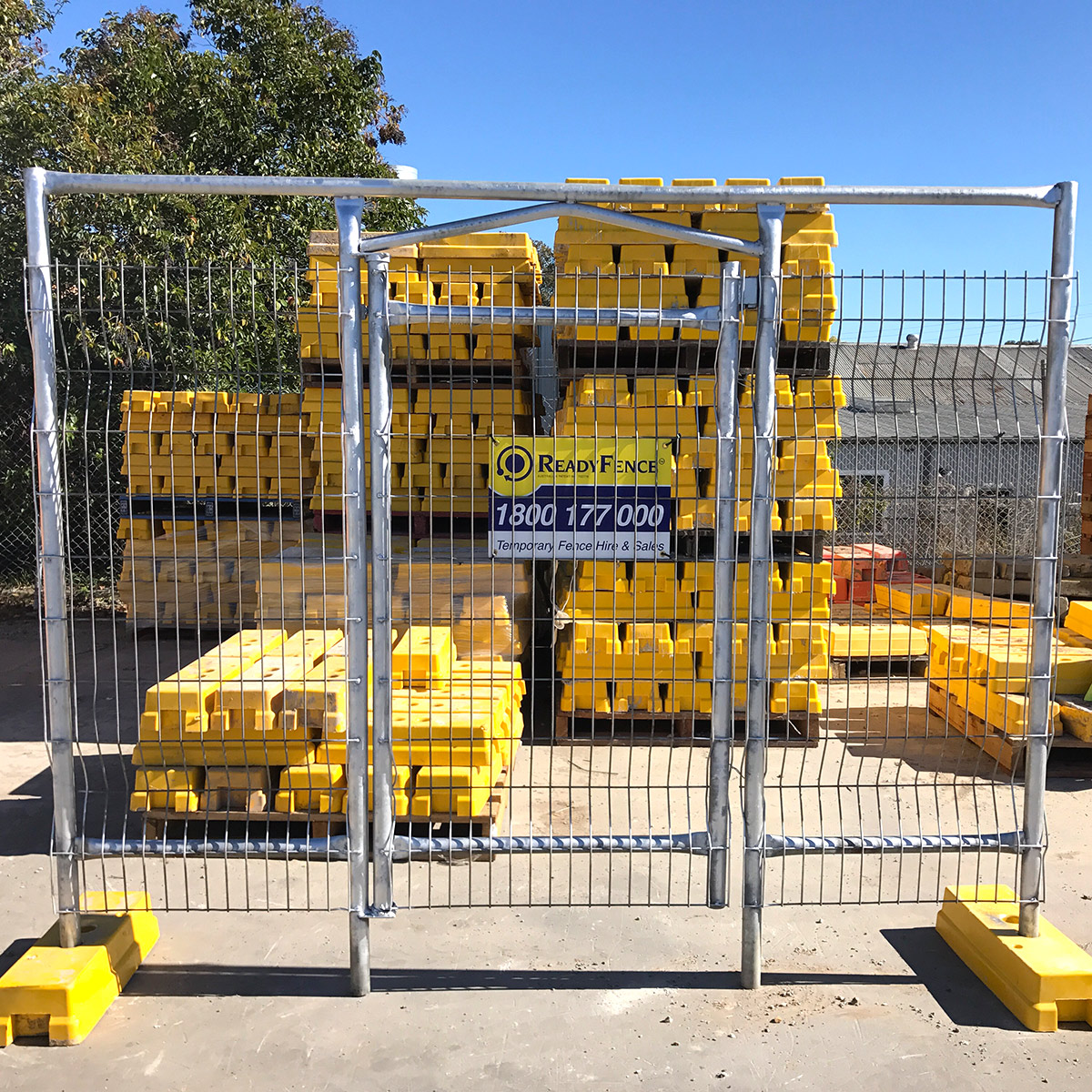

The yellow concrete capped footing blocks use high grade plastic with UV rating to avoid fading. The blocks are filled with complex concrete mix to add weight and stability to the system. See accessories for bracing, shade cloth, hand rail, gates and dog mesh.

Ready Fence has been granted a design certificate to meet AS 4687-2007.

Panel:
Overall: 2.1m high x 2.4m wide 32mm OD pipe with minimum 2.0 mm wall thickness
Mesh wire infill: 4mm 150mm x 60mm spacing
Finish: Hot dipped galvinsed after welding over 50 microns
Weight: 22KG

Blocks:
Overall: 560mm long x 190mm wide x 135mm high
Weight: 31Kg
