Edge Protection Barriers

Description

Simple lock-in installation

Maximum protection

Built-in safety kickplate

Re-usable asset

Complies with AS 1657-2008

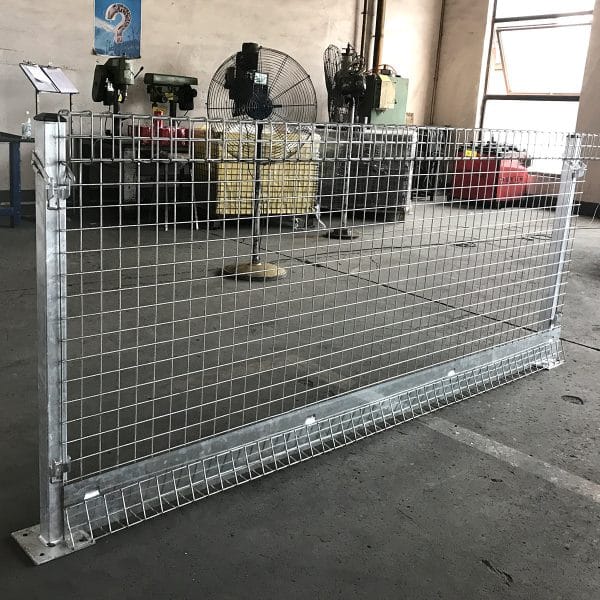

This 1000 mm high x 2400 mm galvanised welded panel is manufactured from 4 mm steel wire at centres not exceeding 50 mm x 50 mm to comply with AS/NZS 4576 – 1995 ‘Guidelines for Scaffolding’.

Panel:

Wire: 4 mm
Mesh: 50 mm x 50 mm centres
Overall: 1000 mm high x 2400 mm wide
Mass: 13.14kg

Slide and Lock Post:

1000 mm – 50 mm x 50 mm x 1.6 mm
Type: Black RHS
Finish: Hot dipped galvanised
Mass: 2.5 kg

Kickplate:
150 mm x 2400 mm galvanised sheet, locked into the panel

Fixing Flange:
152 mm x 152 mm x 5 mm hot-dipped galvanised steel plate
