Heavy Gauge System

Heavy Gauge System

  • Description
  • Specifications

Description

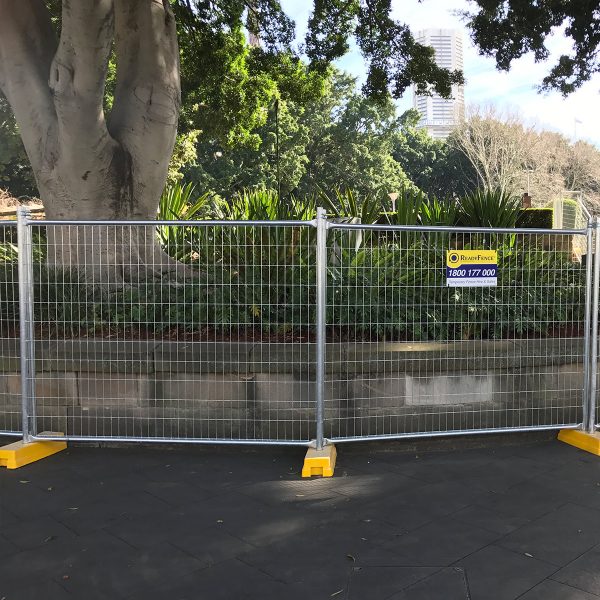

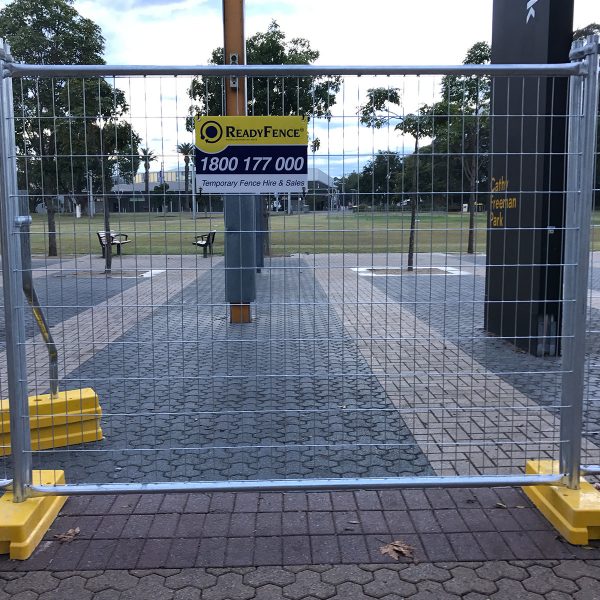

The heavy-duty panel system we manufacture with high-quality steel, mesh and welding procedures which is hot dipped galvanised after welding, making the panel the most robust panel in the market.

The panels are locked together with hot-dipped galvanised steel clamps providing extra strength and stability.

Yellow concrete capped footing blocks using high-grade plastic with UV rating to avoid fading. The blocks are filled with a complex concrete mix to add weight and stability to the system.

See accessories for bracing, shade cloth, handrail, gates and dog mesh.
Ready Fence has been granted a design certificate to meet AS 4687-2007.

Panel:
Overall: 2.0m high x 2.4m wide 42mm OD pipe top and bottom rails and 50mm OD pipe side posts with minimum 2.0 mm wall thickness
Mesh wire infill: 4mm 150mm x 60mm spacing
Finish: Hot dipped galvinsed after welding over 50 microns
Weight: 28KG

Blocks:
Overall: 560mm long x 190mm wide x 135mm high
Weight: 31Kg
